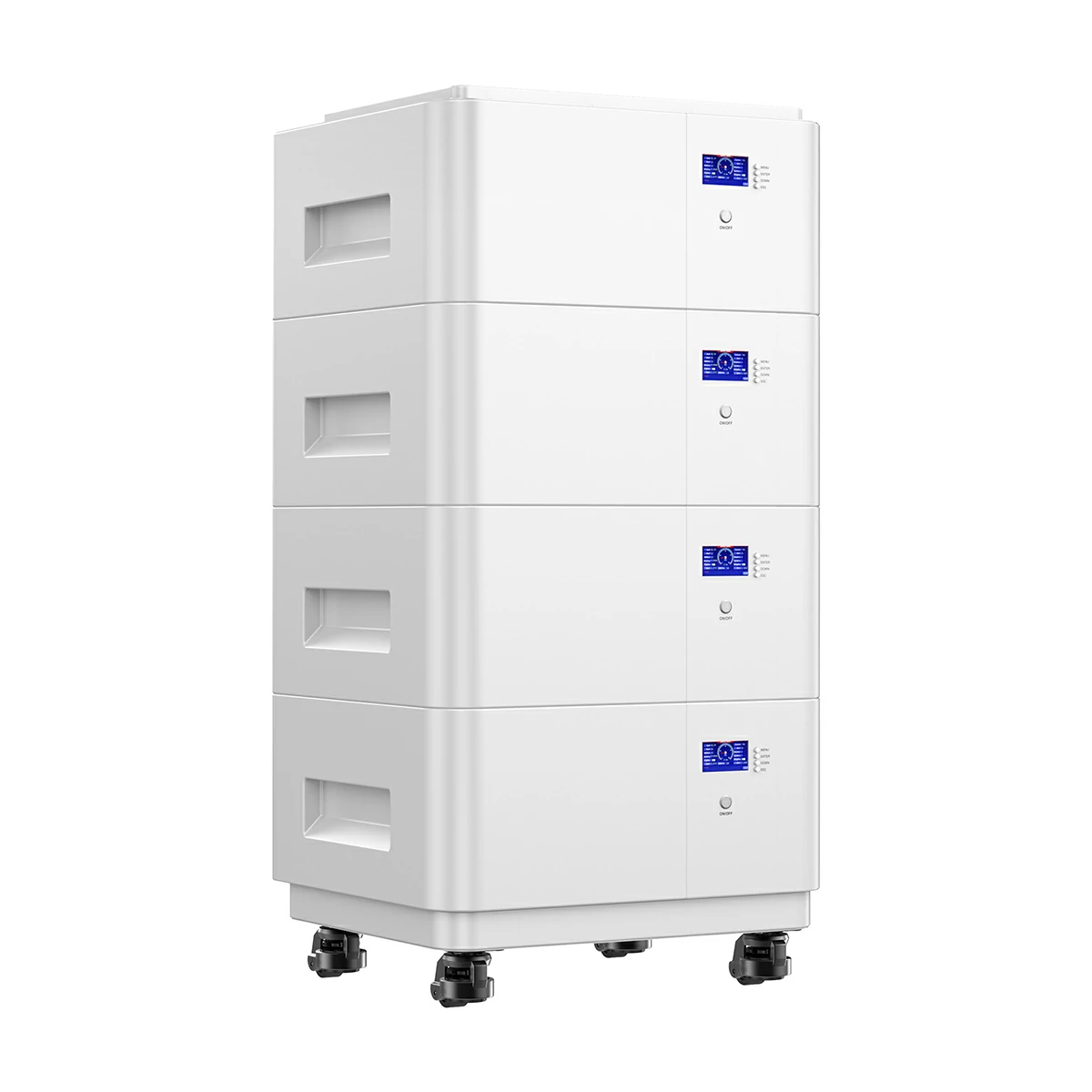

Avepower Stapelbarer Batteriespeicher 20kWh 30kWh 40kWh für den Heimgebrauch
Das Avepower stackable battery storage is designed for flexible residential solar storage, home backup power, off-grid energy systems, small commercial storage and installer-led energy projects.
Each battery module provides 10kWh class energy storage in a compact stackable cabinet. Users can start with one module and expand the system according to real project demand. Two modules can form a 20kWh system, three modules can form a 30kWh system, and four modules can form a 40kWh stackable battery system.
Design mit 16S1P LiFePO4 Zellen, a PACE 200A protection board, CAN/RS485/RS232 Kommunikation, Bluetooth, WiFi, a 3.2-inch button blue screen, 200A air switch and through-wall terminals, this battery is made for safe operation, easier installation and long-term solar energy storage use.
- Energy capacity: 10kWh class single module
- Stackable capacity: 20kWh / 30kWh / 40kWh
- BMS: PACE 16S 200A Software-Schutzplatine
- Maximaler Ladestrom: 100A
- Standard-Entladestrom: 180A
- Maximaler Entladestrom: 200A
ZertifikatCE | CB | RoHS | UN38.3 | FCC
- Unterstützt Bluetooth und WLAN
- 100 % maßgeschneidert
- Bis zu 16 Einheiten parallel
- Über 8000 Zyklen bei 80 % Entladungstiefe

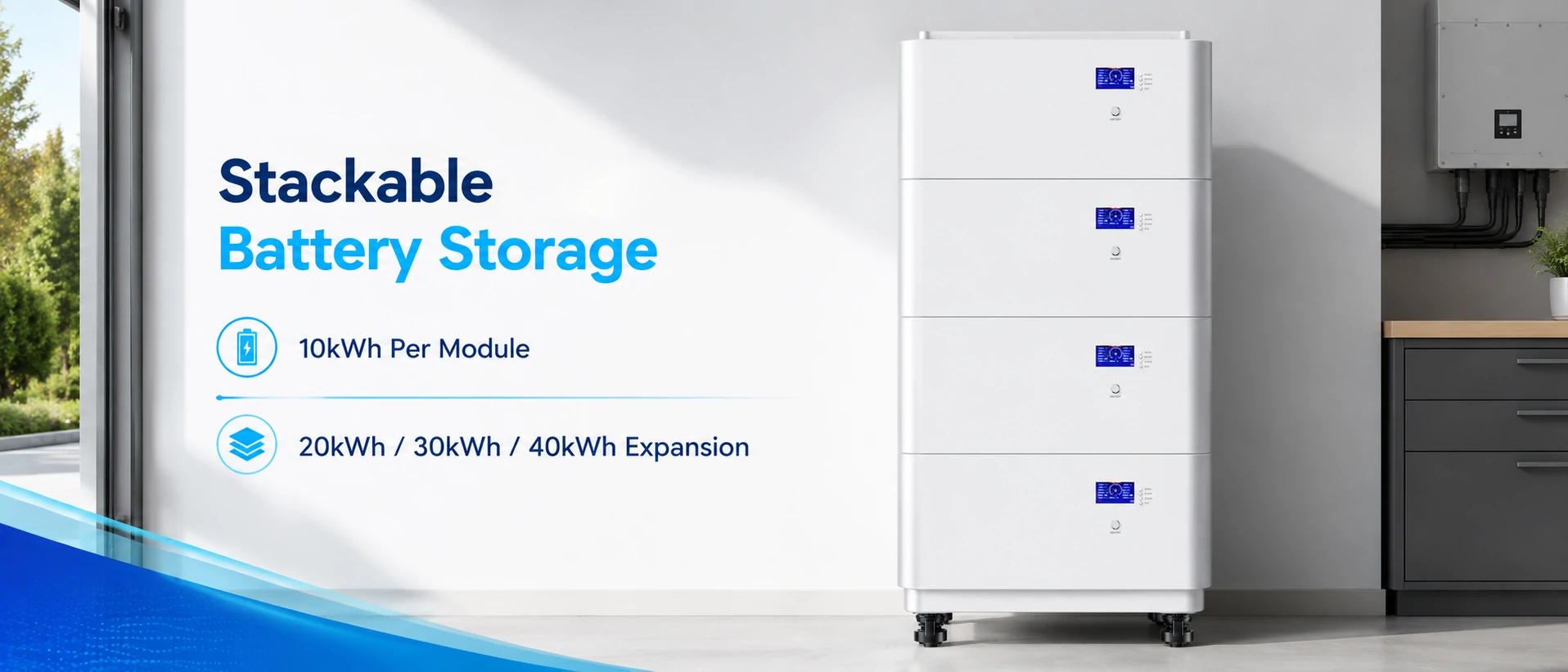

Flexible Stackable Battery for Home Solar Storage
This stackable battery storage is designed for users who need a flexible solar battery system that can start from one module and expand according to real energy demand.
A single module provides 10kWh of storage capacity. Two modules can form a 20kWh system, three modules can form a 30kWh system, and four modules can form a 40kWh stackable battery system. This makes it suitable for residential solar storage, home backup power, off-grid houses, villas, small offices, telecom rooms and small energy storage projects.

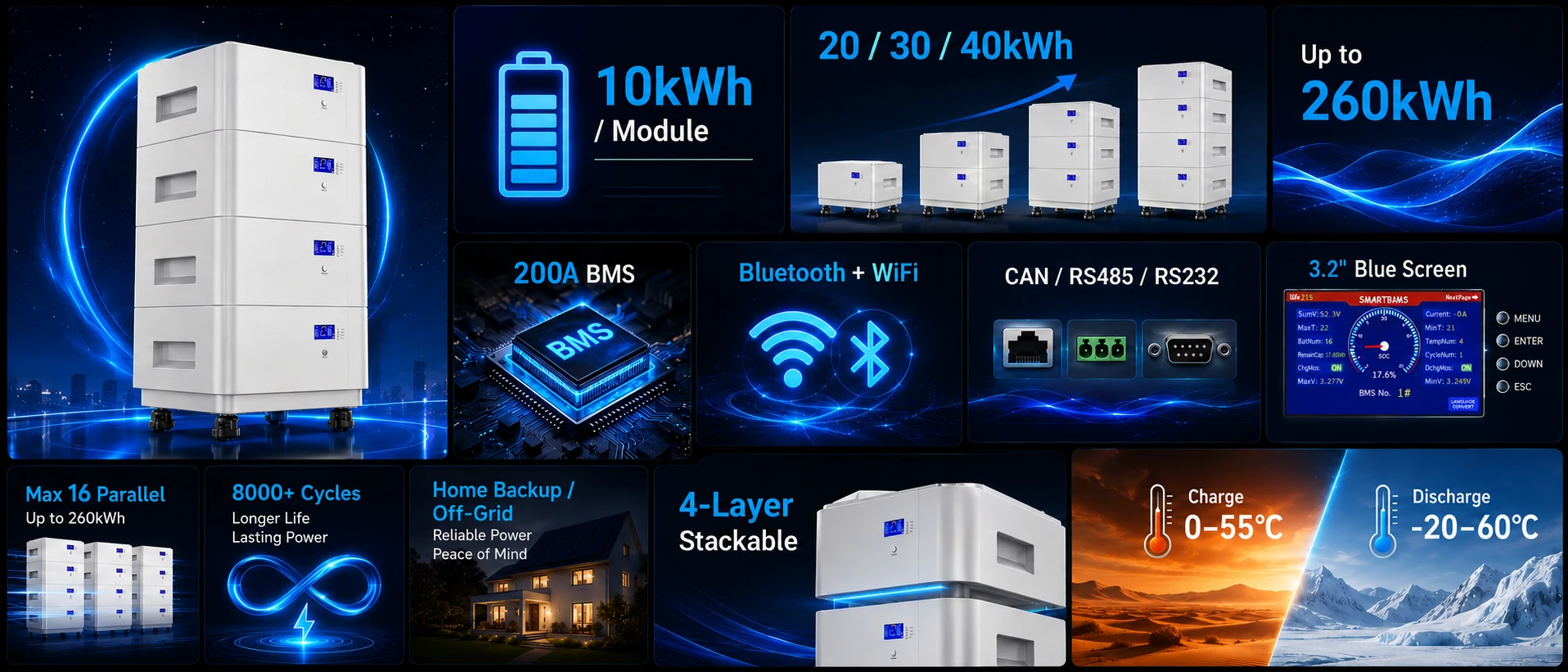

20kWh, 30.kWh und 40kWh Stapelbarer Energiespeicher
This stackable battery storage system is designed for users who need scalable low-voltage energy storage. Instead of choosing a fixed-capacity battery cabinet, installers can combine multiple 10kWh modules according to the project load, backup time and available installation space.
A standard stack can support up to 4 layers. For larger projects, multiple battery groups can be planned according to inverter capacity, cable design, breaker design, communication requirements and installation conditions.
200A BMS für sichereres Laden und Entladen
The stackable battery storage is equipped with a PACE 16S 200A software protection board. The built-in protection circuit module helps protect the battery during charging and discharging, supporting safer and more stable operation for daily solar storage use.
Das BMS provides multiple protection functions, including over charge protection, over discharge protection, temperature protection and overcurrent protection. It also supports CAN, RS485 und RS232 communication, allowing the battery to communicate with compatible inverters and energy management systems.

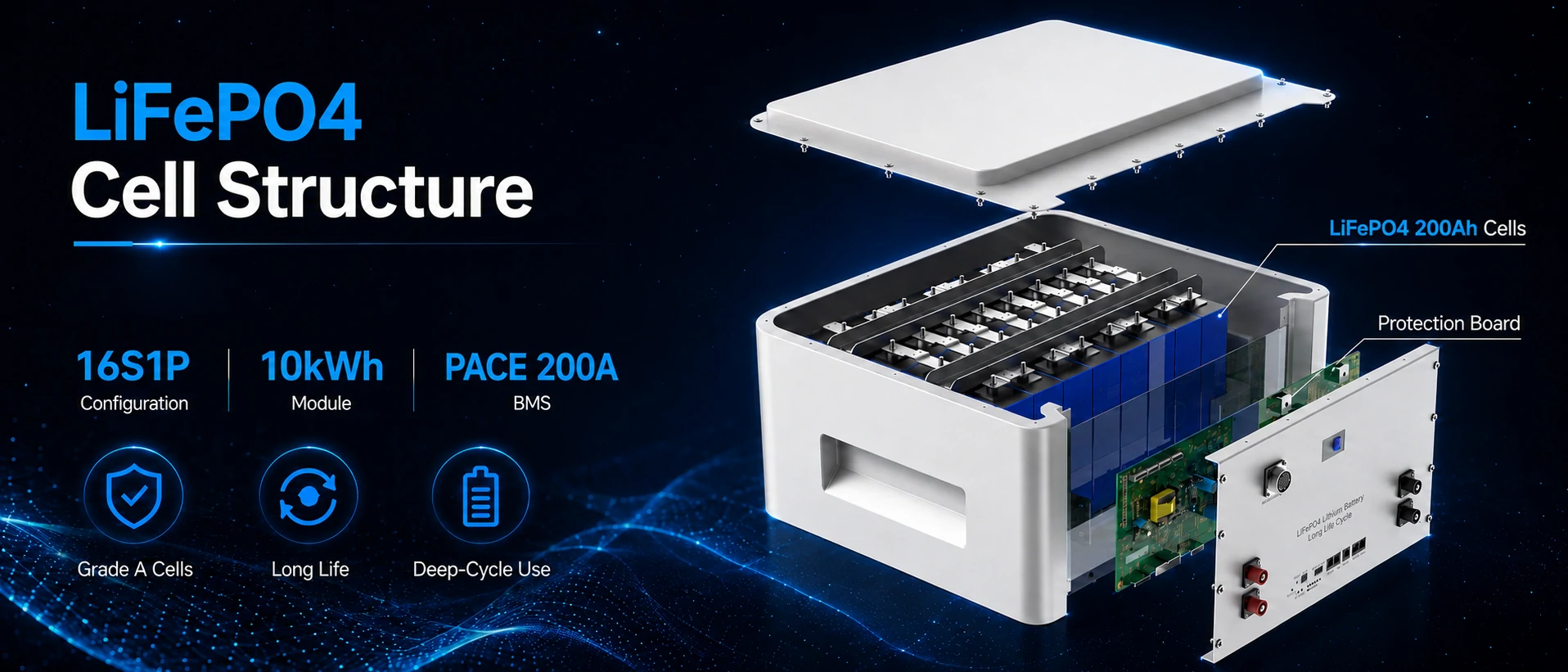

Eingebaut LiFePO4 Zellen für stabile Energiespeicherung
This stackable battery storage is built with reliable 3.2V LiFePO4 Zellen in einem 16S1P-Konfiguration. LiFePO4 chemistry is widely used in solar battery systems because of its stable thermal performance, long service life and strong safety characteristics. Combined with the 200A BMS, the battery can provide safer charging and discharging protection for daily home solar storage, backup power and small energy storage projects.

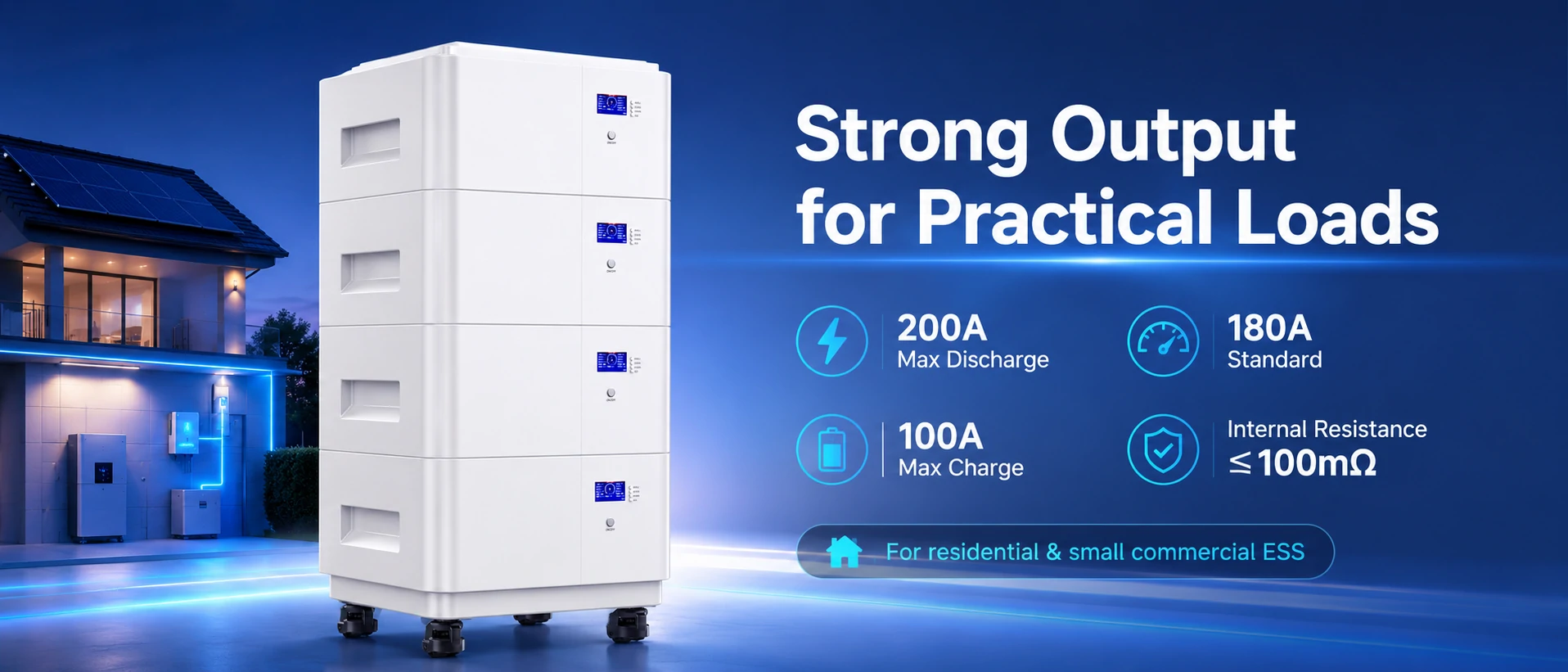

200A Discharge Capability for Practical Energy Loads
Das Avepower stackable battery storage supports a standard discharge current of 180A and a maximum discharge current of 200A. This makes it suitable for residential solar inverters, backup systems and small commercial low-voltage energy storage projects.

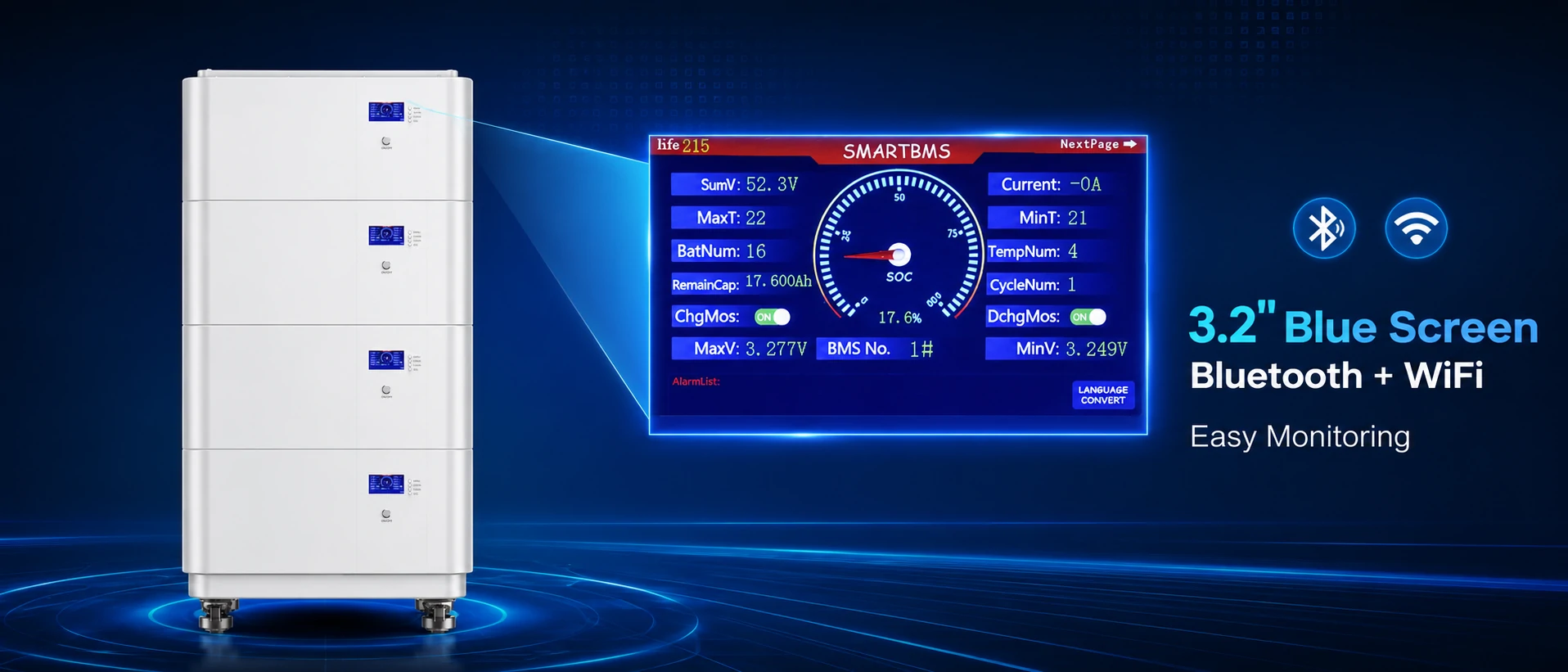

3.2-Inch Button Blue Screen for Easy System Monitoring
The stackable battery storage is equipped with a 3.2-inch button blue screen, allowing users and installers to check key battery information more conveniently during installation, commissioning and daily maintenance.
The screen can help display important battery operating data and system status. Combined with the physical button interface, it provides a practical local monitoring method without relying only on external monitoring devices.

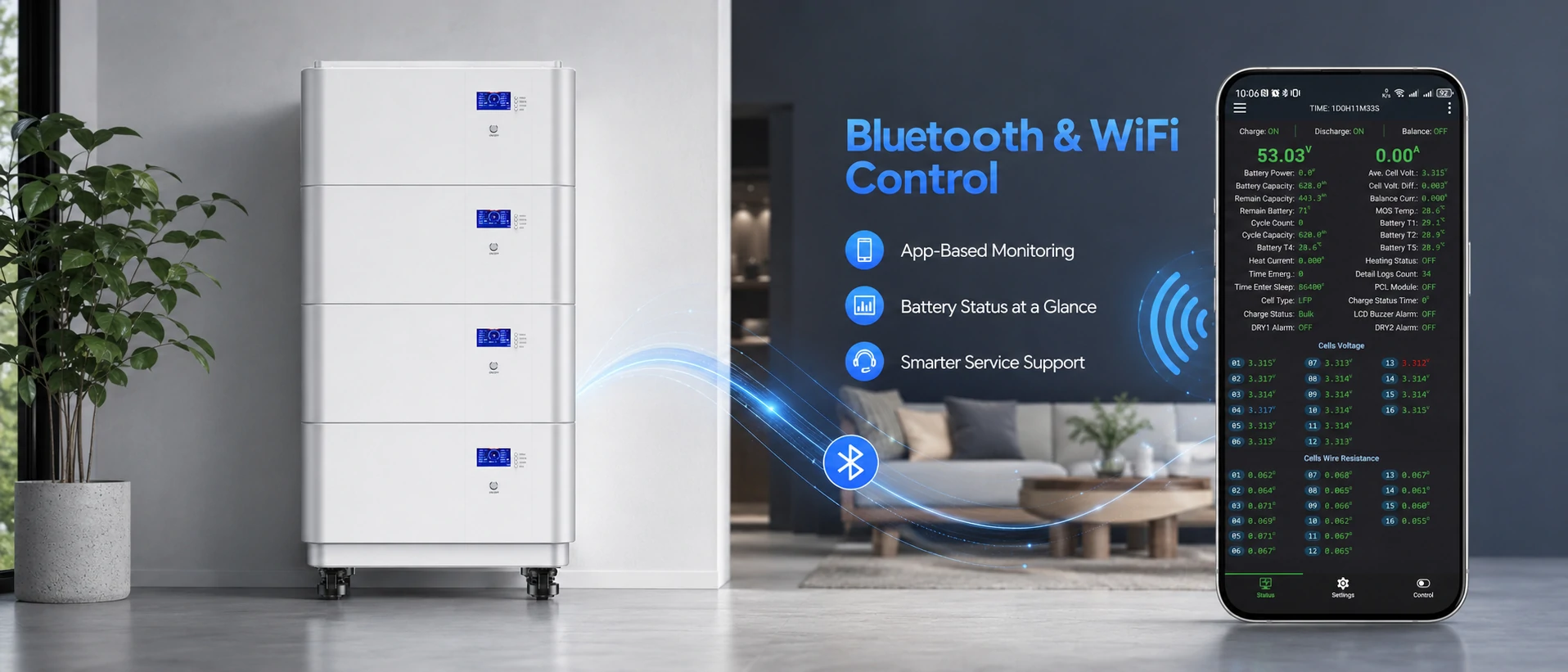

Bluetooth und WiFi Monitoring for Smart Battery Control
The stackable battery storage supports Bluetooth and WiFi monitoring, making it easier for users and installers to check battery status through compatible monitoring tools or mobile app functions. With Bluetooth and WiFi support, users can monitor important operating information such as battery status, system condition and fault alerts.

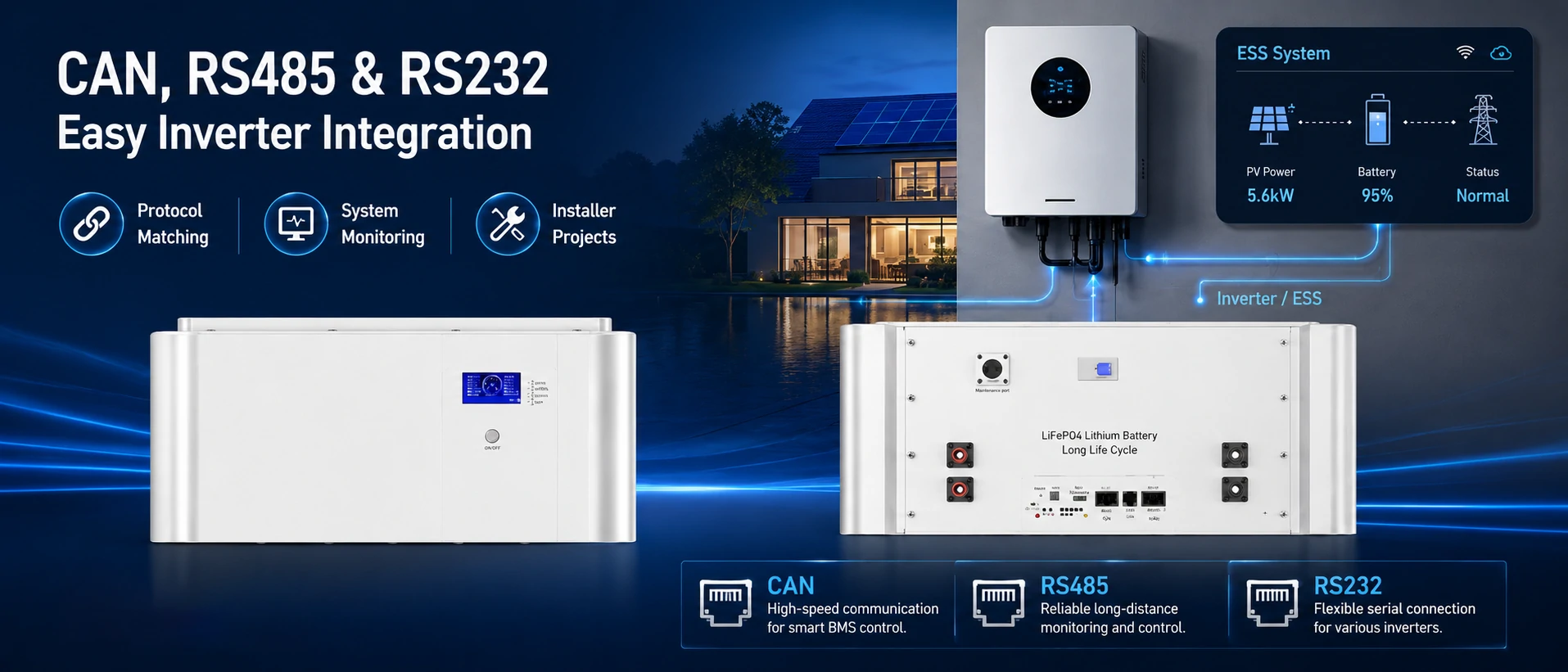

CAN, RS485 und RS232 Communication for Inverter Matching
This stackable battery storage supports CAN, RS485 und RS232 communication. These communication interfaces help the battery exchange key operating information with compatible inverters, including state of charge, voltage, current, alarms and protection status.
Avepower can support inverter communication matching according to project requirements, inverter brand, protocol setting and installation scenario.

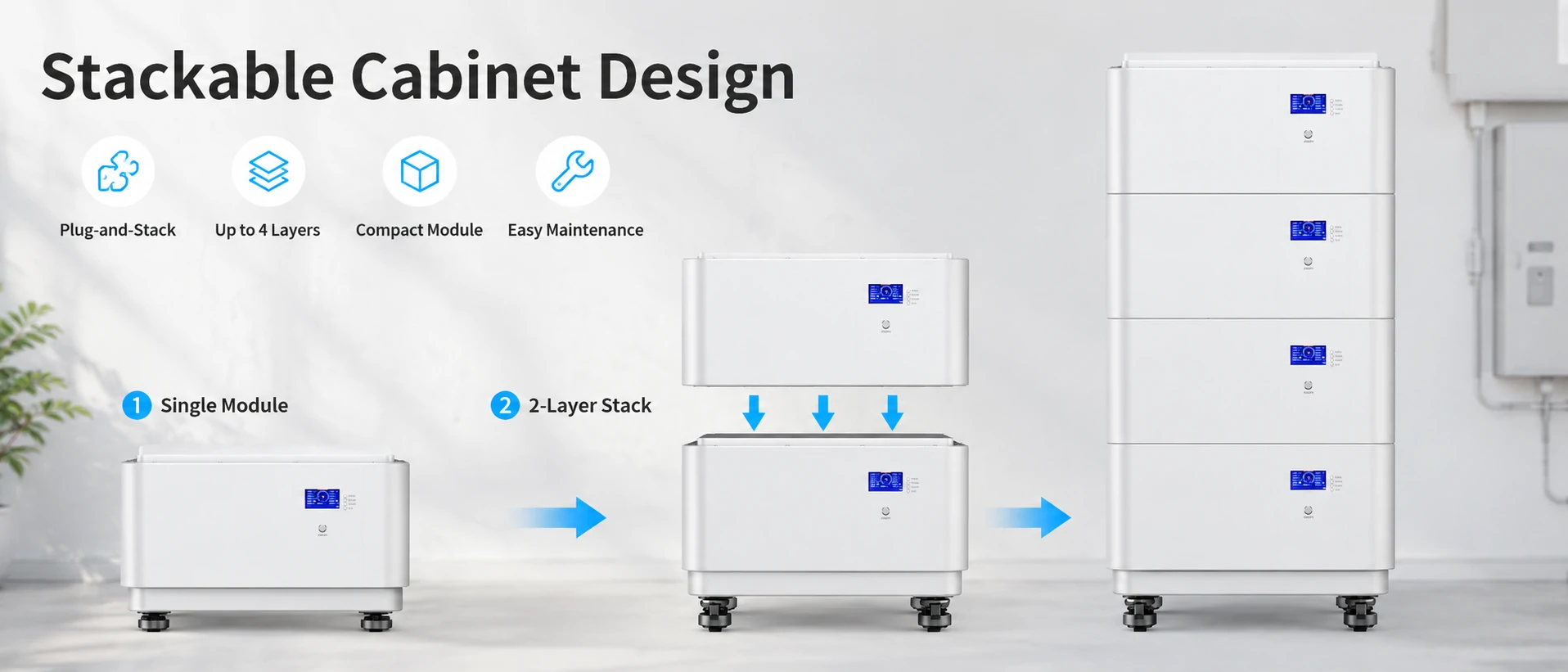

Stackable Cabinet Design for Easier Installation
The stackable battery storage uses a compact stackable cabinet structure with a module size of 596 × 520 × 277mm and an approximate weight of 90kg. The low-height module design makes it easier to stack multiple units and configure different capacity systems in limited installation spaces.
The battery is equipped with 200A square through-wall terminals, a 200A air switch, a 6A circular soft switch and a maintenance port.

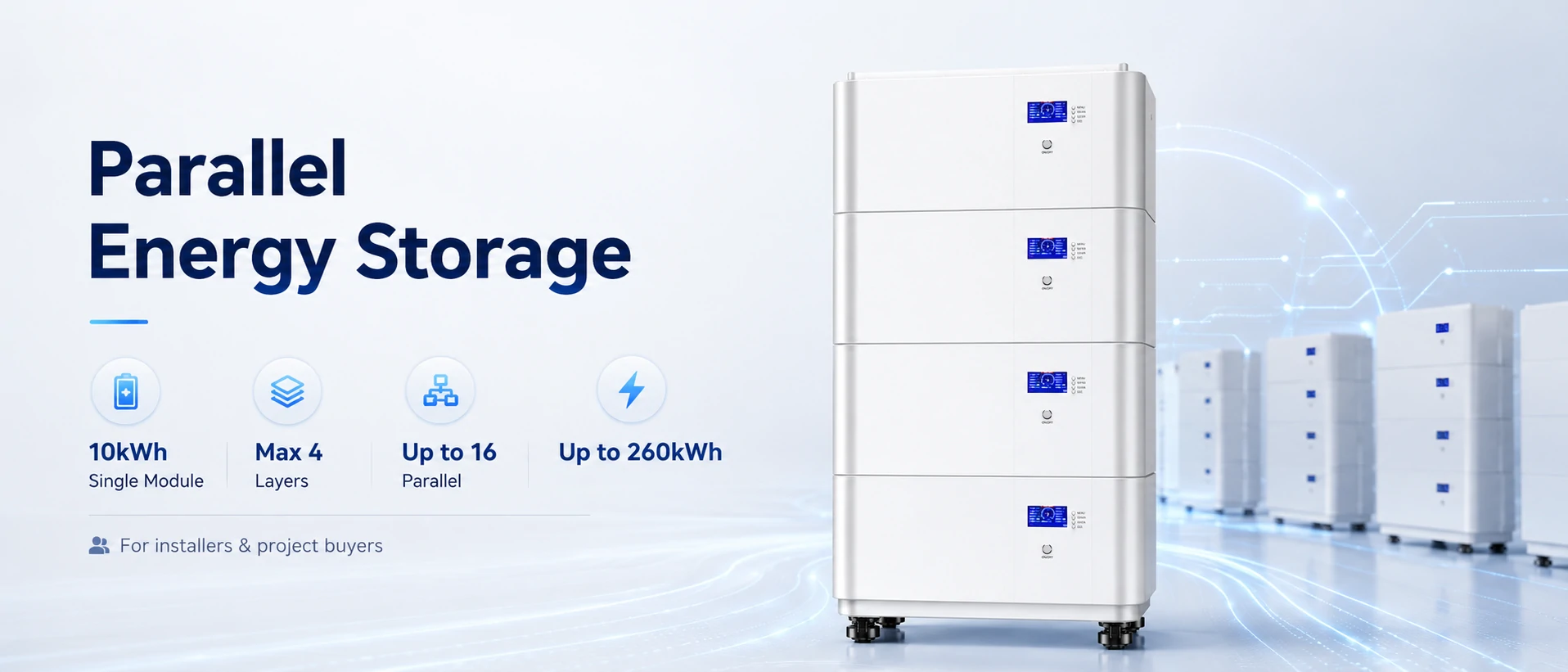

Project Expansion up to 260kWh
Besides standard 20kWh, 30.kWh und 40kWh stackable systems, the battery can also be used in customized energy storage projects. With suitable system design, inverter matching, communication setup and protection configuration, multiple battery groups can be configured for larger capacity requirements.

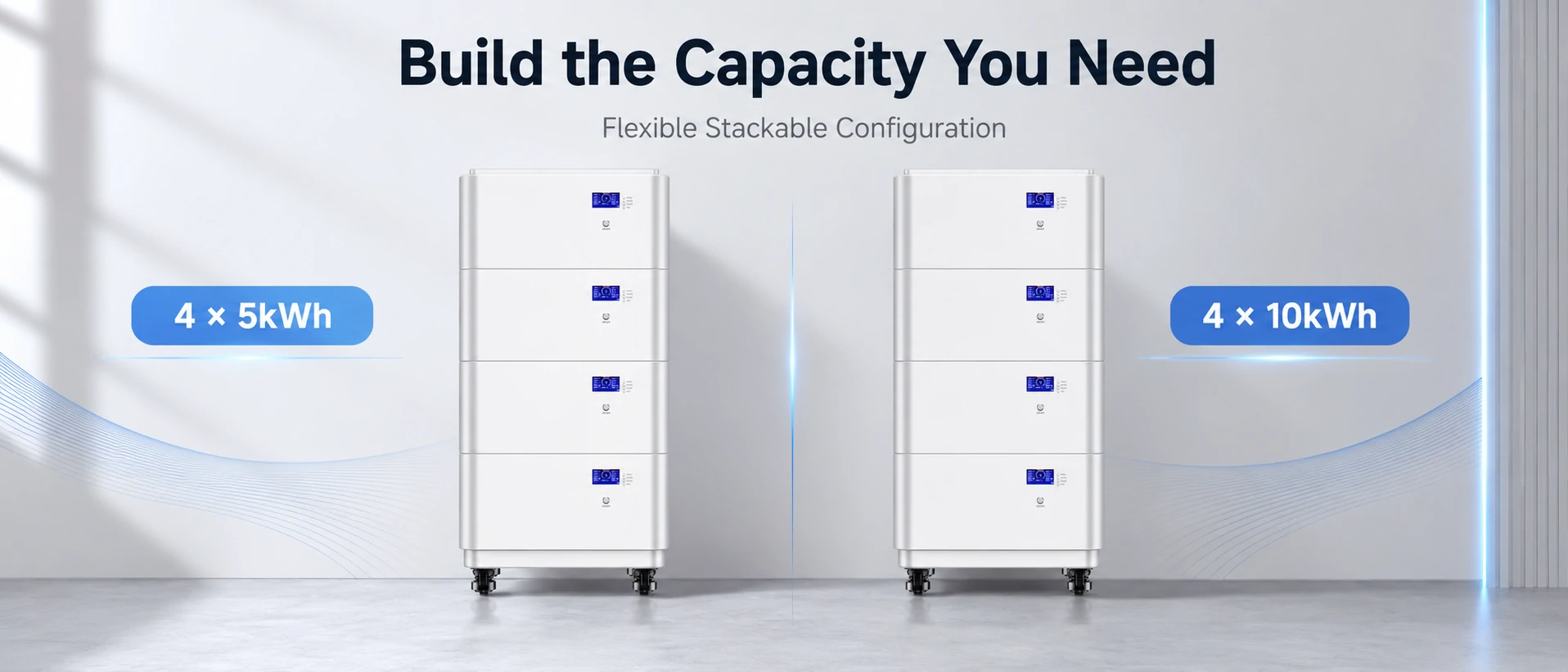

Flexible Stackable Configuration
Customers can choose a 5kWh single module or a 10kWh single module as the starting capacity, then expand the system step by step according to backup time, solar storage demand and installation space. Multiple modules can be stacked to build 10kWh, 20.kWh, 30.kWh oder 40. JunikWh systems, while larger project configurations can also be customized for residential, villa, off-grid and small commercial energy storage applications.

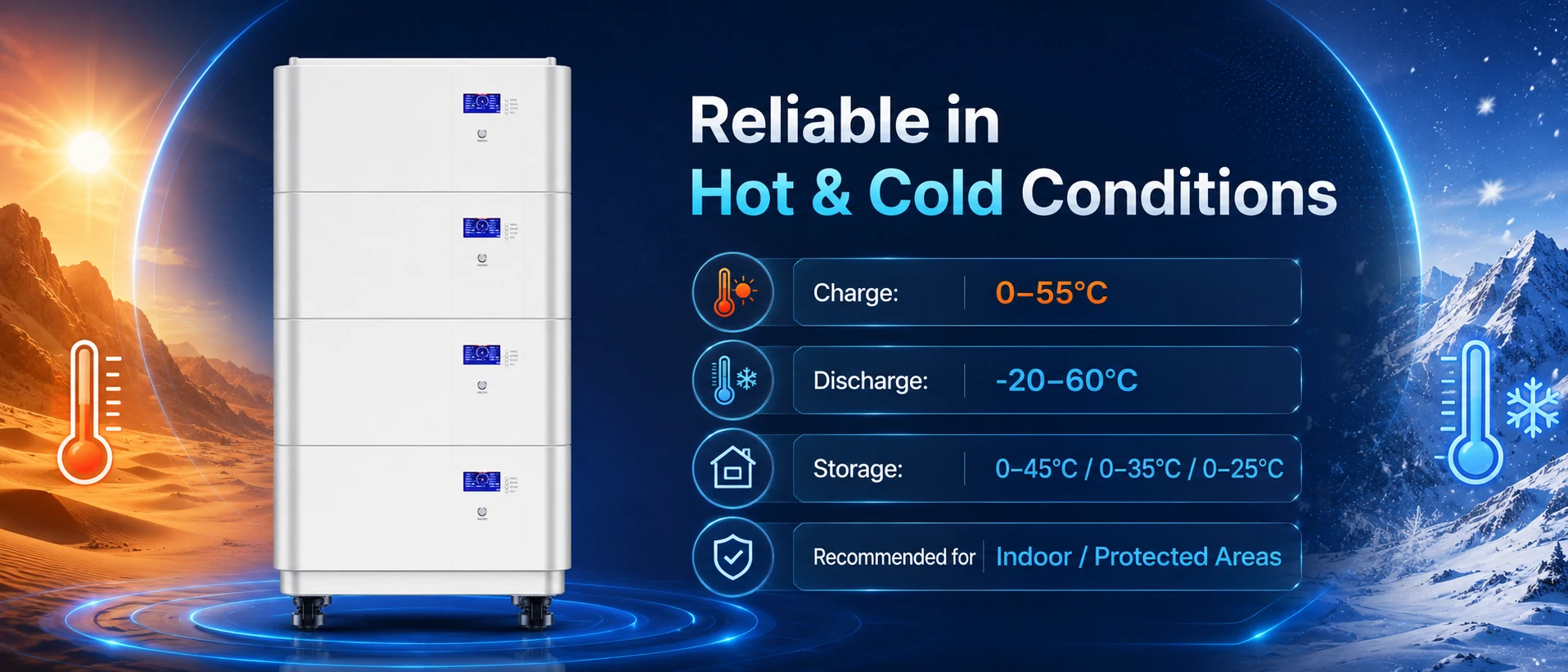

Stable Operation in Different Conditions
The stackable battery storage is designed to operate within a practical temperature range for residential and small project energy storage applications.
Charging is supported from 0°C to 55°C, while discharging is supported from -20°C to 60°C. Long-term storage should avoid direct sunlight, water, heavy pressure, mechanical impact and high-temperature environments.
Custom Stackable Battery Support for OEM and Project Buyers
Avepower can support customized stackable battery solutions for distributors, solar installers, wholesalers, EPC contractors and OEM/ODM Kunden.
Customization can include cabinet appearance, battery capacity, BMS configuration, communication protocol, Bluetooth/WiFi monitoring, screen design, label design, packaging and documentation support.

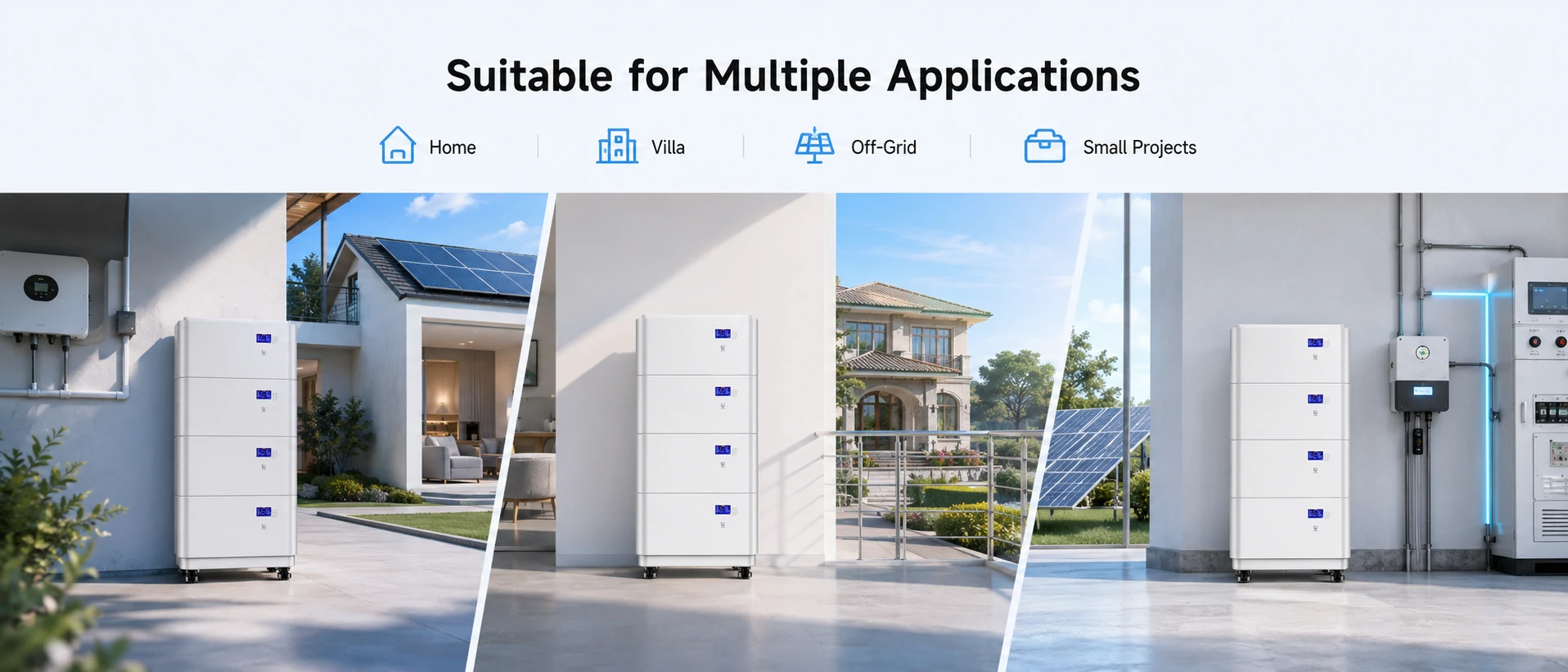

Designed for Home Solar, Backup Power and Off-Grid Systems
Das Avepower Stapelbarer Akku can be used in different energy storage scenarios. It can store solar energy during the day, support backup power during grid outages and help improve energy independence for homes and small projects.
It is suitable for users who want a flexible battery system that can start from a smaller capacity and expand later when energy demand increases.
Produktspezifikationen
| Artikel | Wert |
|---|---|
|
Ladespannung |
58.4V |
|
Batterietyp |
LiFePO4 |
|
Nennleistung |
20kWh, 30.kWhOder 40kWh |
|
Standardladestrom |
41.2A, 0°C to 10°C |
|
Max-Ladestrom |
100A, 10°C to 45°C |
|
Standardentladestrom |
180A |
|
Maximaler Entladestrom |
200A |
|
Lademodus |
CC-CV |
|
Kommunikation |
CAN/ RS485/ RS232 |
|
Life Cycle |
＞ 8000（bei 25℃, 80% DOD） |
|
Maximale Parallelschaltung |
16 Einheit |
|
Gestaltetes Leben |
10 + Jahre |
Wechselrichter-Kompatibilität
Unsere Batterien sind so konzipiert, dass sie mit den meisten gängigen Wechselrichtermarken nahtlos zusammenarbeiten. Sie können sie bedenkenlos installieren, da sie sich problemlos in Ihr bestehendes Solar- oder Stromsystem integrieren lassen und so eine zuverlässige Energiespeicherung gewährleisten.
Hier sind nur einige gängige kompatible Wechselrichtermodelle aufgeführt. Die vollständige Liste sowie Informationen zu einem bestimmten Modell finden Sie unter [Link einfügen]. Avepower Wechselrichter-Kompatibilitätsliste.
FAQs
Hier finden Sie schnelle Antworten auf die am häufigsten gestellten Fragen und erfahren, wie es Ihren Energieverbrauch verändern kann.
Für optimale Leistung und Langlebigkeit ist die Batterie so konstruiert, dass sie sicher in einem Ladetemperaturbereich von 0 bis 55 °C und einem Entladetemperaturbereich von -20 bis 55 °C arbeitet, wodurch sie in einer Vielzahl von Umgebungen zuverlässig funktioniert.
Dieses Energiespeichersystem nutzt hochwertige LiFePO4 Zellen, die für ihre überlegene Sicherheit, thermische Stabilität und Langlebigkeit im Vergleich zu anderen Lithium-Ionen-Zellen bekannt sind. LiFePO4 Die Technologie bietet verbesserte Sicherheitsmerkmale und gewährleistet eine stabile Leistung über eine längere Lebensdauer.
Das Avepower Der Akku verwendet hochwertiges Lithium-Eisenphosphat (LiFePO4Die verwendete Chemie ermöglicht eine beeindruckende Zyklenlebensdauer von bis zu 8,000 vollständigen Lade-Entlade-Zyklen bei 25 °C und einer Entladetiefe von 80 %. Diese lange Zyklenlebensdauer gewährleistet jahrelange zuverlässige Leistung für private und gewerbliche Energiespeicher.
Das System unterstützt mehrere Kommunikationsprotokolle, darunter Bluetooth und Wi-Fi. CAN, RS485 und RS232Dies ermöglicht die Fernüberwachung und -verwaltung in Echtzeit. Benutzer können Systemstatus, Batteriezustand und Energieverbrauch bequem über kompatible mobile Apps oder Überwachungsplattformen verfolgen.
